Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating

MOQ: 1 UNIT
prezzo: Negotation
standard packaging: Imballato da cartone
payment method: T/T, Western Union
Supply Capacity: 1000 unit per month
Informazioni Dettagliate
Product Description
Informazioni Dettagliate
Place of Origin
CHINA
Marca
FUNSONIC
Certificazione
CE
Model Number
FSW-1005-L
Production Name:
Ultrasonic Spraying Nozzle
Frequency:
100Khz
Max Power:
15w
Automized Particle Size Range:
15-40μm
Spray flow:
0.01-1ml/min
Liquid viscosity:
<15cps
Particle size:
<8μm
Application:
Medical balloon, stent, fine wire spraying
Evidenziare:

Antiplatelet Drug Ultrasonic Atomizer Nozzle

,

Line Spray Ultrasonic Atomizer Nozzle

,

Focused Ultrasonic Atomizer Nozzle

Product Description

Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating​





Description:

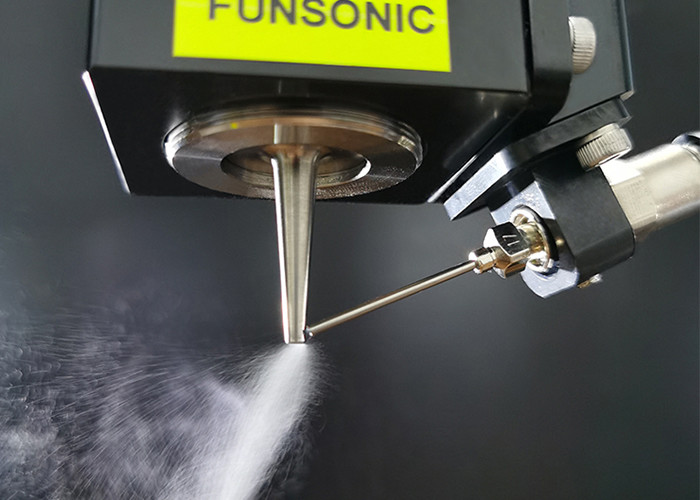

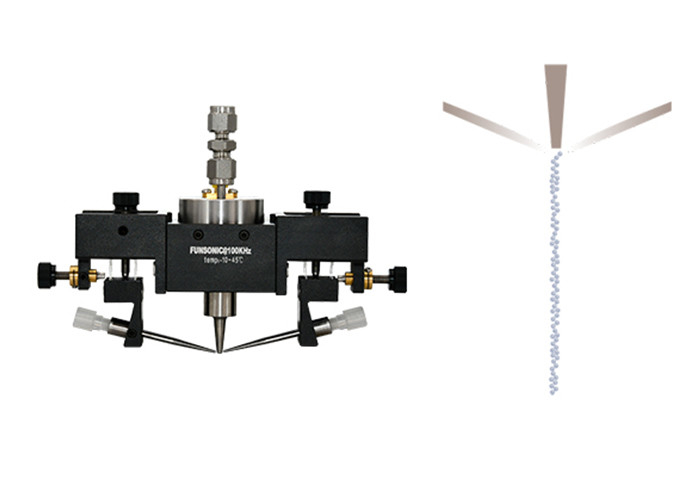

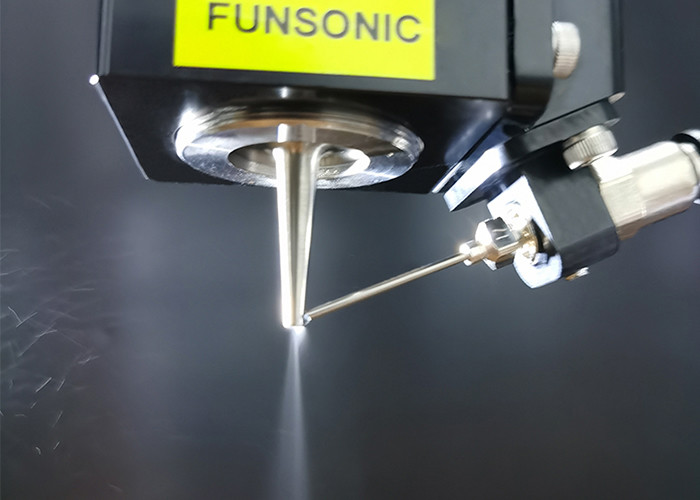

The line spray focused antiplatelet drug spraying ultrasonic atomizer nozzle is combined with low-pressure air/gas to produce a soft, highly focused small droplet beam. The liquid is delivered to the atomization surface of the nozzle through an isolated hypotube, while the air/gas delivered through the nozzle hole at a fixed low pressure shapes the atomized droplets into a very precise target jet with a diameter of only 0.020 inches (0.5 millimeters).

Each ultrasonic nozzle operates at a specific resonant frequency, which determines the median size of the droplet. The difference in droplet size is very small, and its distribution can be accurately predicted within a certain range through mathematical calculations. For example, a 120 kHz nozzle produces a median droplet size of 18 microns when spraying water. The higher the frequency, the smaller the decrease in median value.





Parameters:



Model FSW-1005-L
Name 100Khz Line Ultrasonic Nozzle Atomization
Frequency 100Khz
Atomized particle size range(μm) 15-40
Spray width(mm) 0.5-2
Spray flow(ml/min) 0.01-1
Spray height(mm) 10-20
Liquid viscosity (cps) <15
Particle size (μm) <8
Diversion pressure (Mpa) <0.02
Application Suitable for Medical balloon, stent, fine wire spraying





Composition :



1. Balloon catheter: A balloon catheter is a soft, expandable catheter with a balloon at its end. Balloons can be inflated or injected with liquid to create a stable workspace in the target area.
2. Ultrasonic spraying system: The balloon catheter is equipped with an ultrasonic spraying system, including an ultrasonic nozzle, a spraying agent supply system, and a coating transfer system. Ultrasonic nozzles use ultrasonic vibration to atomize liquid spray agents into small particles, which are then sprayed onto the target surface through an airflow.
3. Control system: used to control the operation of the entire equipment and adjust the spraying parameters. The control system usually includes a touch screen interface for users to set spraying parameters, monitor equipment status, and adjust operating modes.

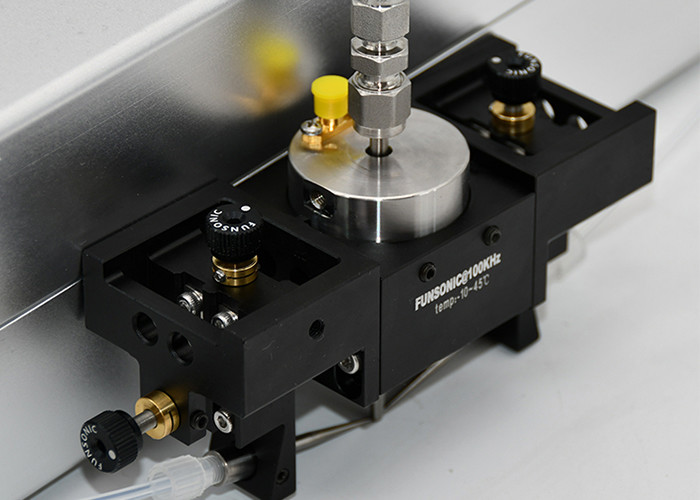

Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating​



Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating 0Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating 1

Tags:

Anti Restenosi Polymers Medical Spraying Machine,

Nozzolo tipo sonda ad ultrasuoni 40Khz,

Nozzolo di spruzzatura ad ultrasuoni ad ampia area

Recommended Products
Linea di produzione per siringhe Tecnologia di rivestimento a spruzzo ad ultrasuoni per vasi di raccolta del sangue BTC e tubi di iniezione

Linea di produzione per siringhe Tecnologia di rivestimento a spruzzo ad ultrasuoni per vasi di raccolta del sangue BTC e tubi di iniezione

Contatta ora
Rivestimento di precisione ad ultrasuoni di ossido conduttivo trasparente Video

Rivestimento di precisione ad ultrasuoni di ossido conduttivo trasparente

Contatta ora
500 °C Materiale perovskite ad alta temperatura Macchina di spruzzatura ad ultrasuoni automatizzata Video

500 °C Materiale perovskite ad alta temperatura Macchina di spruzzatura ad ultrasuoni automatizzata

Contatta ora
Sistema di rivestimento del cappuccio del fumo ad ultrasuoni da 220v FS630 Video

Sistema di rivestimento del cappuccio del fumo ad ultrasuoni da 220v FS630

Contatta ora
110Khz Alta frequenza di ultrasuoni Vortexing Spraying Coating Nozzles Video

110Khz Alta frequenza di ultrasuoni Vortexing Spraying Coating Nozzles

Contatta ora
120Khz Alta Frequenza Ultrasuoni a banda larga Anti-Riflesso Rivestimento Spray Nozzle Video

120Khz Alta Frequenza Ultrasuoni a banda larga Anti-Riflesso Rivestimento Spray Nozzle

Contatta ora
Tecnologia di rivestimento per ugelli a spruzzo ad ultrasuoni a bassa potenza da 120 Khz Video

Tecnologia di rivestimento per ugelli a spruzzo ad ultrasuoni a bassa potenza da 120 Khz

Contatta ora
Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating Video

Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating

Contatta ora
High Frequency 100Khz Line Micro Nano Mist Sprayer Video

High Frequency 100Khz Line Micro Nano Mist Sprayer

Contatta ora
PEM Fuel Cell Flat Material Ultrasonic Conical Spray Nozzle Video

PEM Fuel Cell Flat Material Ultrasonic Conical Spray Nozzle

Contatta ora
Ultrasonic Wide Open Mist Fan Shaped Area Spraying Nozzle System

Ultrasonic Wide Open Mist Fan Shaped Area Spraying Nozzle System

Contatta ora
prodotti
products details
prodotti

saldatura ultrasonica del metallo

Macchina per rivestimento a spruzzo ad ultrasuoni

Rivestimento ad indio ad ultrasuoni

Apparecchiature di sonochimica ad ultrasuoni

Trattamento della fusione ad ultrasuoni

Lavorare assistito ultrasonico

Attrezzatura di elaborazione ultrasonica

macchina di saldatura plastica ad ultrasuoni

Macchina da cucire a ultrasuoni

Tagliatrice ultrasonica

Convertitore della saldatura a ultrasuoni

Trasduttore della saldatura a ultrasuoni

trasduttore piezoelettrico ultrasonico

Oscillatore ultrasonico

generatore dell'onda ultrasonica

Saldatrice ultrasonica del cablaggio del cavo

Saldatrice ultrasonica del metallo
name
  • name
  • name
  • name
  • name
  • name
Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating
MOQ: 1 UNIT
prezzo: Negotation
standard packaging: Imballato da cartone
payment method: T/T, Western Union
Supply Capacity: 1000 unit per month
Informazioni Dettagliate
Product Description
Informazioni Dettagliate
Place of Origin
CHINA
Marca
FUNSONIC
Certificazione
CE
Model Number
FSW-1005-L
Production Name:
Ultrasonic Spraying Nozzle
Frequency:
100Khz
Max Power:
15w
Automized Particle Size Range:
15-40μm
Spray flow:
0.01-1ml/min
Liquid viscosity:
<15cps
Particle size:
<8μm
Application:
Medical balloon, stent, fine wire spraying
Minimum Order Quantity:
1 UNIT
Prezzo:
Negotation
Imballaggi particolari:
Imballato da cartone
Termini di pagamento:
T/T, Western Union
Supply Ability:
1000 unit per month
Evidenziare

Antiplatelet Drug Ultrasonic Atomizer Nozzle

,

Line Spray Ultrasonic Atomizer Nozzle

,

Focused Ultrasonic Atomizer Nozzle

Product Description

Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating​





Description:



The line spray focused antiplatelet drug spraying ultrasonic atomizer nozzle is combined with low-pressure air/gas to produce a soft, highly focused small droplet beam. The liquid is delivered to the atomization surface of the nozzle through an isolated hypotube, while the air/gas delivered through the nozzle hole at a fixed low pressure shapes the atomized droplets into a very precise target jet with a diameter of only 0.020 inches (0.5 millimeters).

Each ultrasonic nozzle operates at a specific resonant frequency, which determines the median size of the droplet. The difference in droplet size is very small, and its distribution can be accurately predicted within a certain range through mathematical calculations. For example, a 120 kHz nozzle produces a median droplet size of 18 microns when spraying water. The higher the frequency, the smaller the decrease in median value.





Parameters:



Model FSW-1005-L
Name 100Khz Line Ultrasonic Nozzle Atomization
Frequency 100Khz
Atomized particle size range(μm) 15-40
Spray width(mm) 0.5-2
Spray flow(ml/min) 0.01-1
Spray height(mm) 10-20
Liquid viscosity (cps) <15
Particle size (μm) <8
Diversion pressure (Mpa) <0.02
Application Suitable for Medical balloon, stent, fine wire spraying





Composition :



1. Balloon catheter: A balloon catheter is a soft, expandable catheter with a balloon at its end. Balloons can be inflated or injected with liquid to create a stable workspace in the target area.
2. Ultrasonic spraying system: The balloon catheter is equipped with an ultrasonic spraying system, including an ultrasonic nozzle, a spraying agent supply system, and a coating transfer system. Ultrasonic nozzles use ultrasonic vibration to atomize liquid spray agents into small particles, which are then sprayed onto the target surface through an airflow.
3. Control system: used to control the operation of the entire equipment and adjust the spraying parameters. The control system usually includes a touch screen interface for users to set spraying parameters, monitor equipment status, and adjust operating modes.

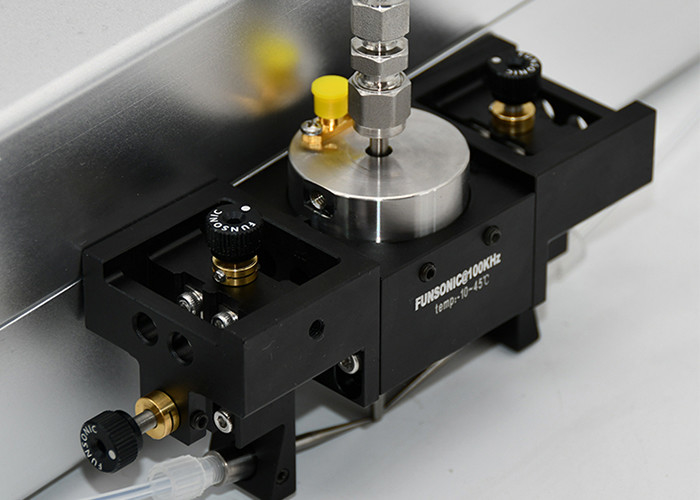

Line Spray Focused Ultrasonic Atomizer Nozzle For Antiplatelet Drug Coating​
